HiBoost 15K Smart Link Deluxe Cell Booster
People are viewing this right now
Payment Secure
HiBoost 15K Smart Link Deluxe Cell Booster
Reliable Signal
Enhancement for the
Whole Home

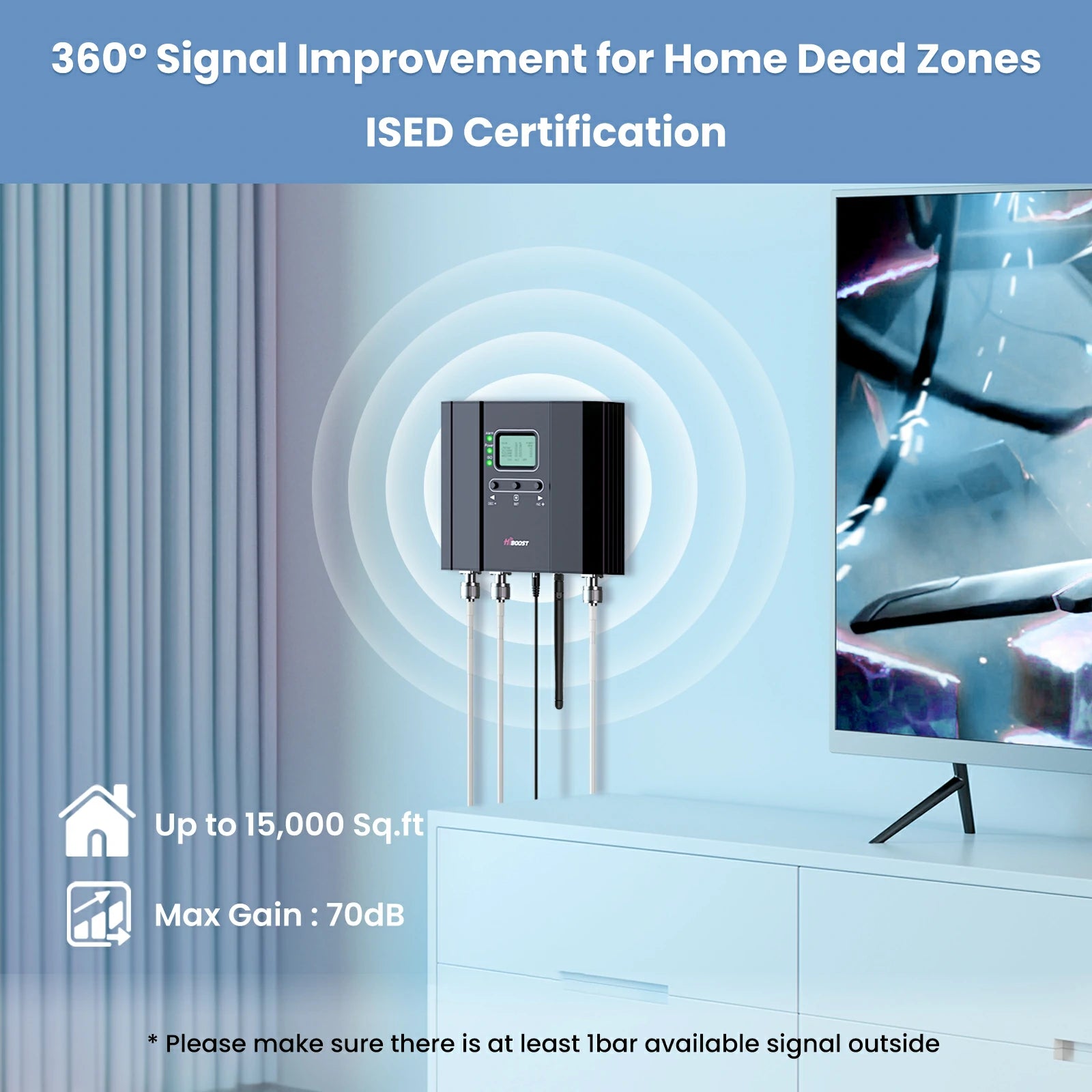

Whether you're in the city, suburbs, or countryside, the 15K Smart Link Deluxe Signal Booster ensures reliable coverage with any phone or provider.
Maximum Output Power:
UL 24 dBm, DL 12 dBm
Free Up Space:
8.6 x 6.5 x 2 in
Maximium Gain:70 dB
5G
Compatible
Coverage:
7,000 - 15,000 Sq. Feet,5-6 Rooms.
Works Band:
Band 12,Band 13,Band 5,
Band 25/2,Band 4,Band 66
Supported Standards:
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all other cellular standards.
Carriers:

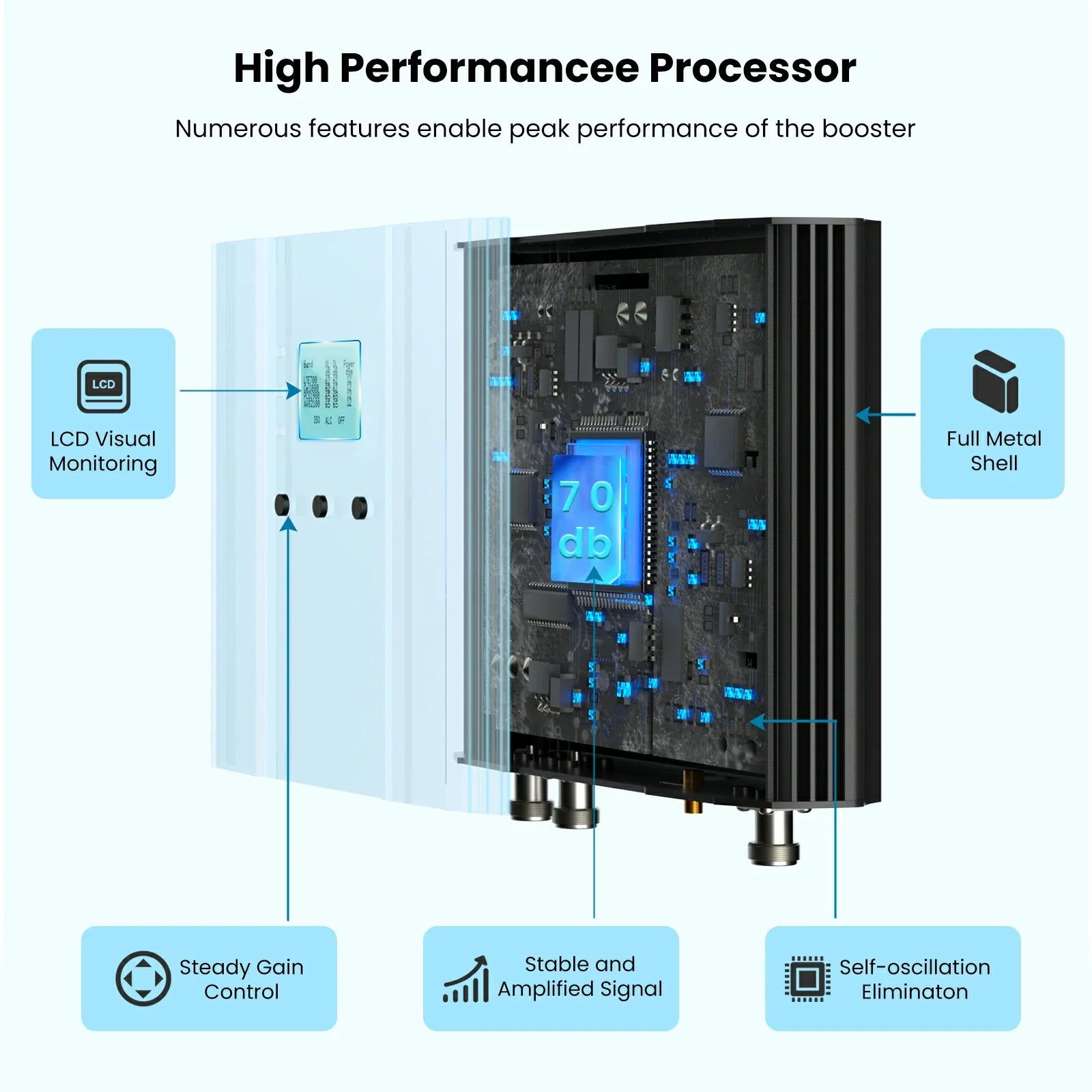

Exceptional Performance & Intelligent Design
• LCD Visual Monitoring
Real-time monitoring of gain, frequency, power, etc. on the LCD display helps fine-tune performance for optimal output.
• Smart chip AGC
Booster features AGC technology to intelligently detect and adjust signal strength for optimal performance.
• Carrier-Grade Components
Boosters feature carrier-grade components, delivering reliable and long-lasting performance.
• ISED Certification
Certified by ISED, Meeting Safety Standards.
Reliable Connectivity for Your Family
Covers 7,000 to 15,000 sq ft of your home or office. Enjoy fewer dropped calls, data speeds, and clearer voice quality.
Coverage for
5-6 Rooms
Supports Multiple
Users & Devices
All Canadian Carriers
and Compatible 5G
LCD and APP Monitor
Assist Installation
Boost the Signal Where You Need It Most
Provides coverage for up to 10,000 sq. ft., for multiple rooms.
WholeHome / Office / Garage / Campground / Restaurant / Warehouse / Village

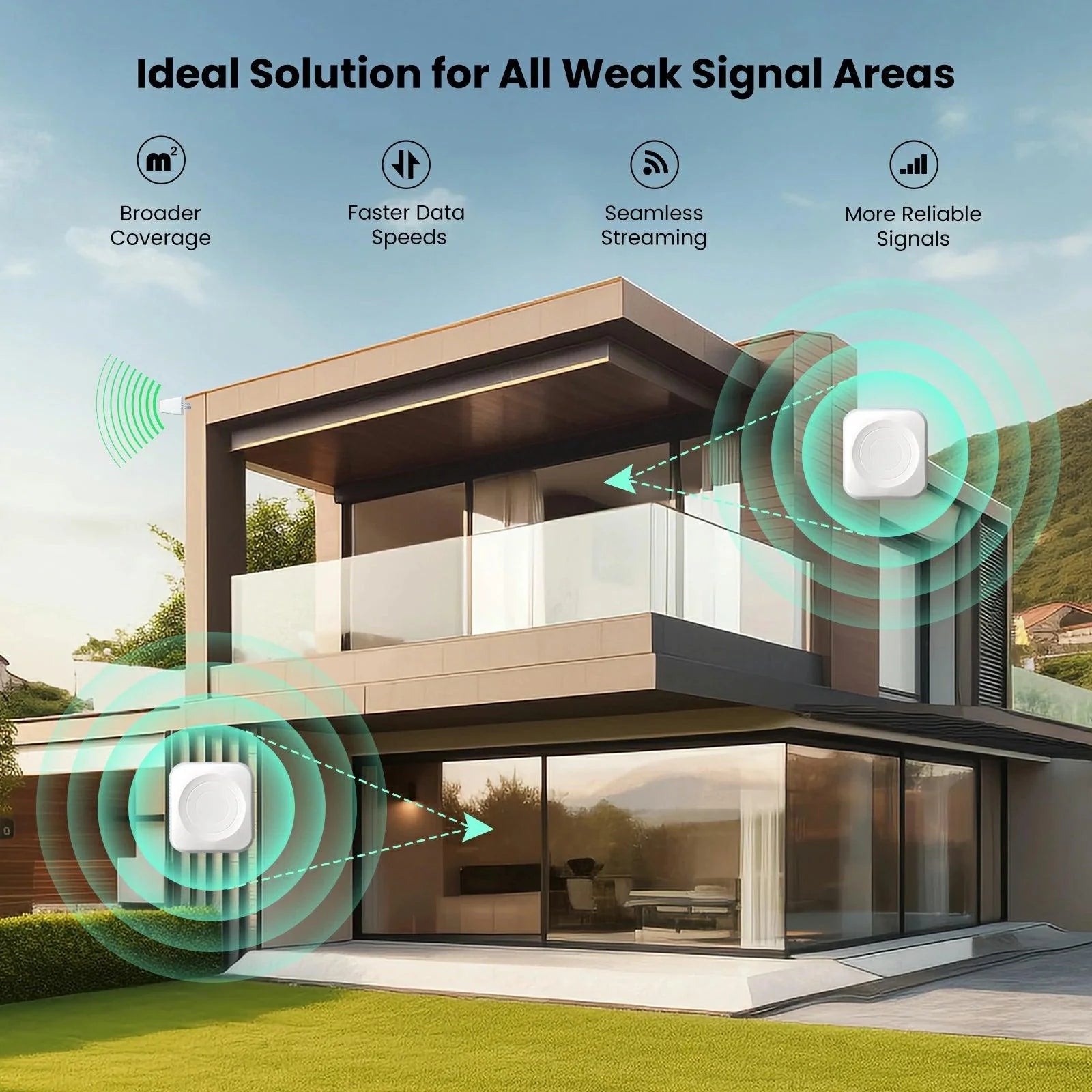

Advanced Antenna System
Features a high-gain outdoor antenna and two additional indoor panel antennas for signal reception and expand coverage.

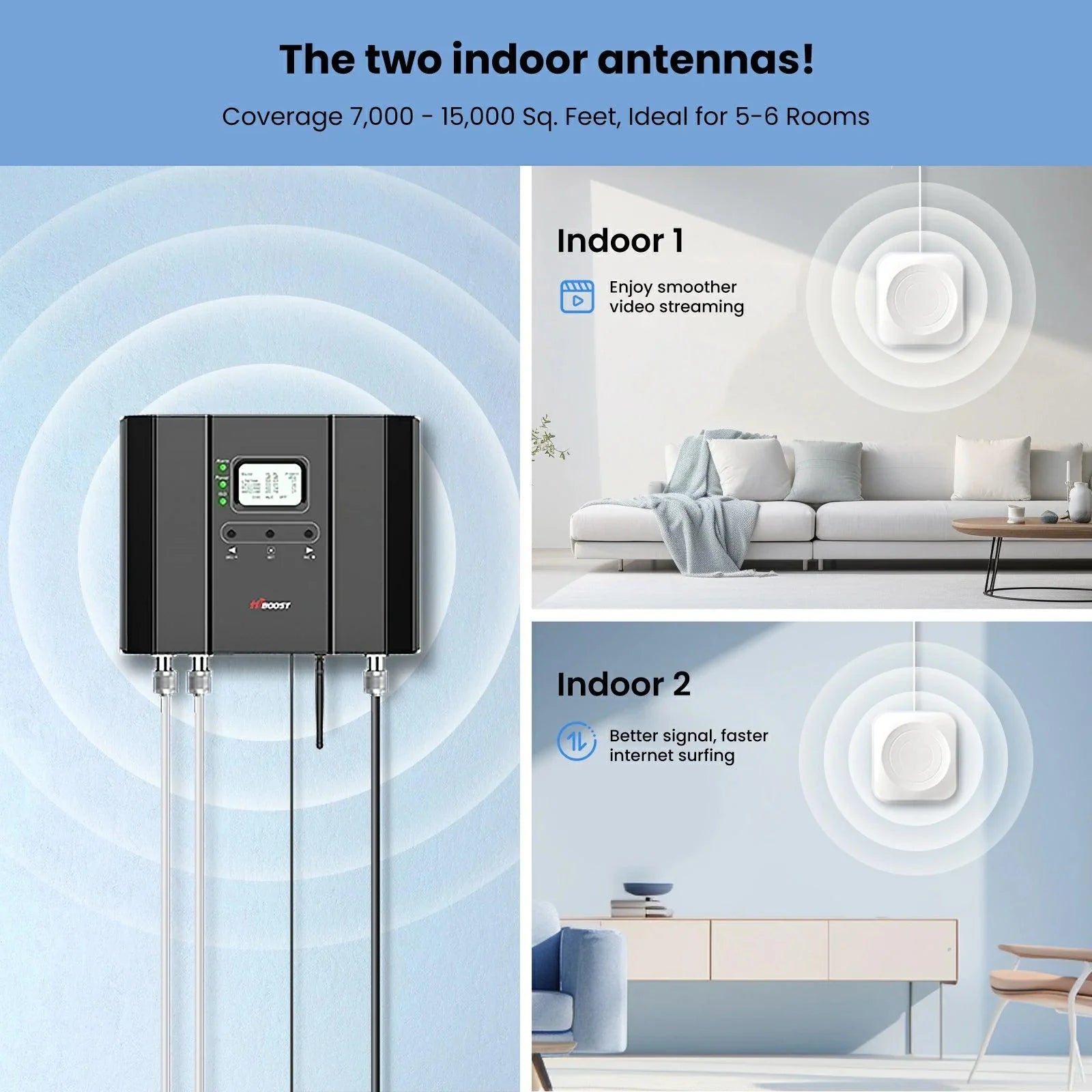

Two Panel Indoor Antenna
Expands coverage up to 15,000 sq ft, enhancing cellular reception in multiple rooms or medium-sized homes with two floors.
From Weak to Strong: Signal Boosting Made Easy
See how our signal booster elevates your device
from weak to strong
signal, ensuring uninterrupted service for all your needs.
No more dropped calls
No more loading screens
No more slow texts
Easily stay connected
anytime, anywhere

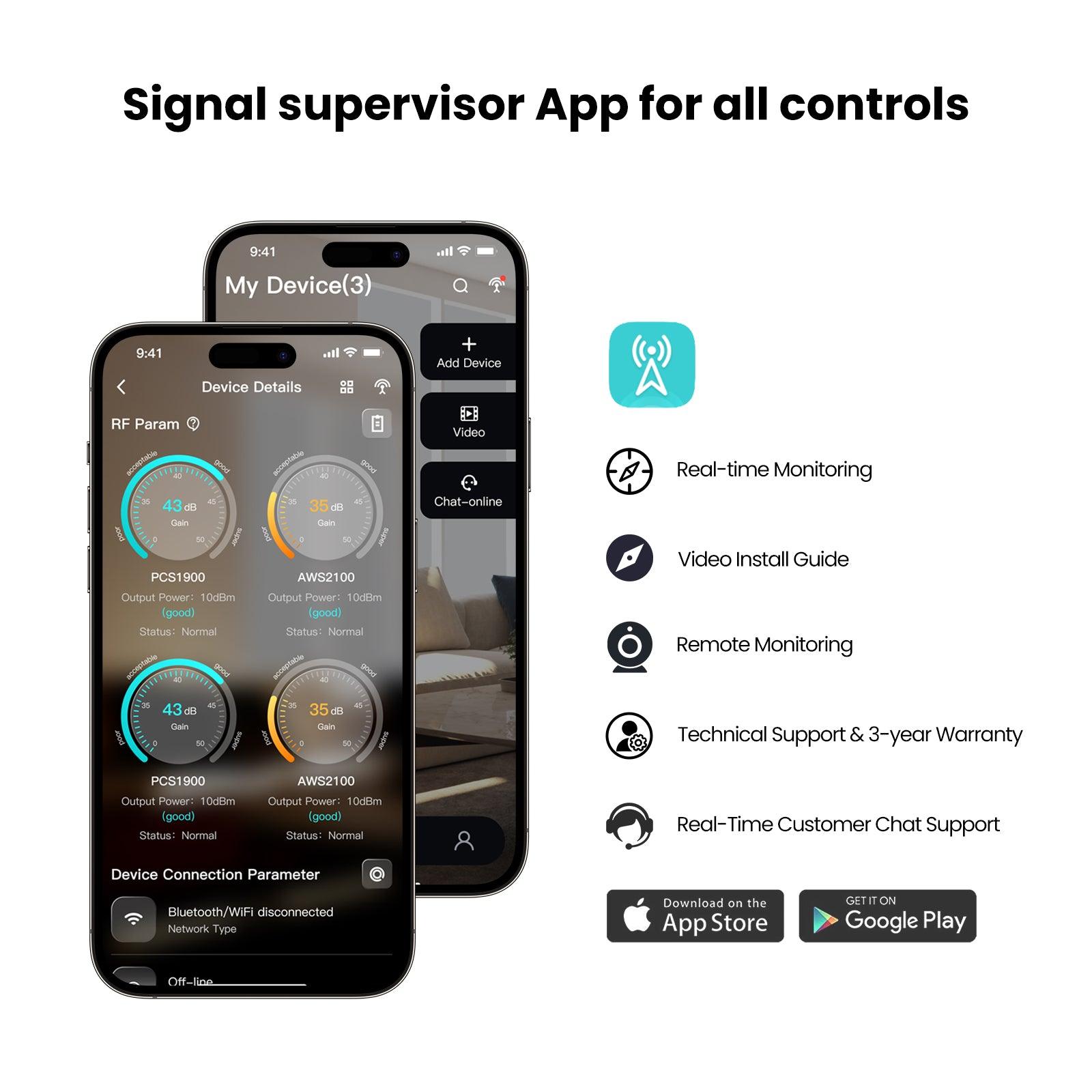

Signal Supervisor App for All Controls
- Video Install Guide
- Remote Monitoring
- Real-time Monitoring
- Technical Support & Warranty
- Customer Support Ticket& Online Chat

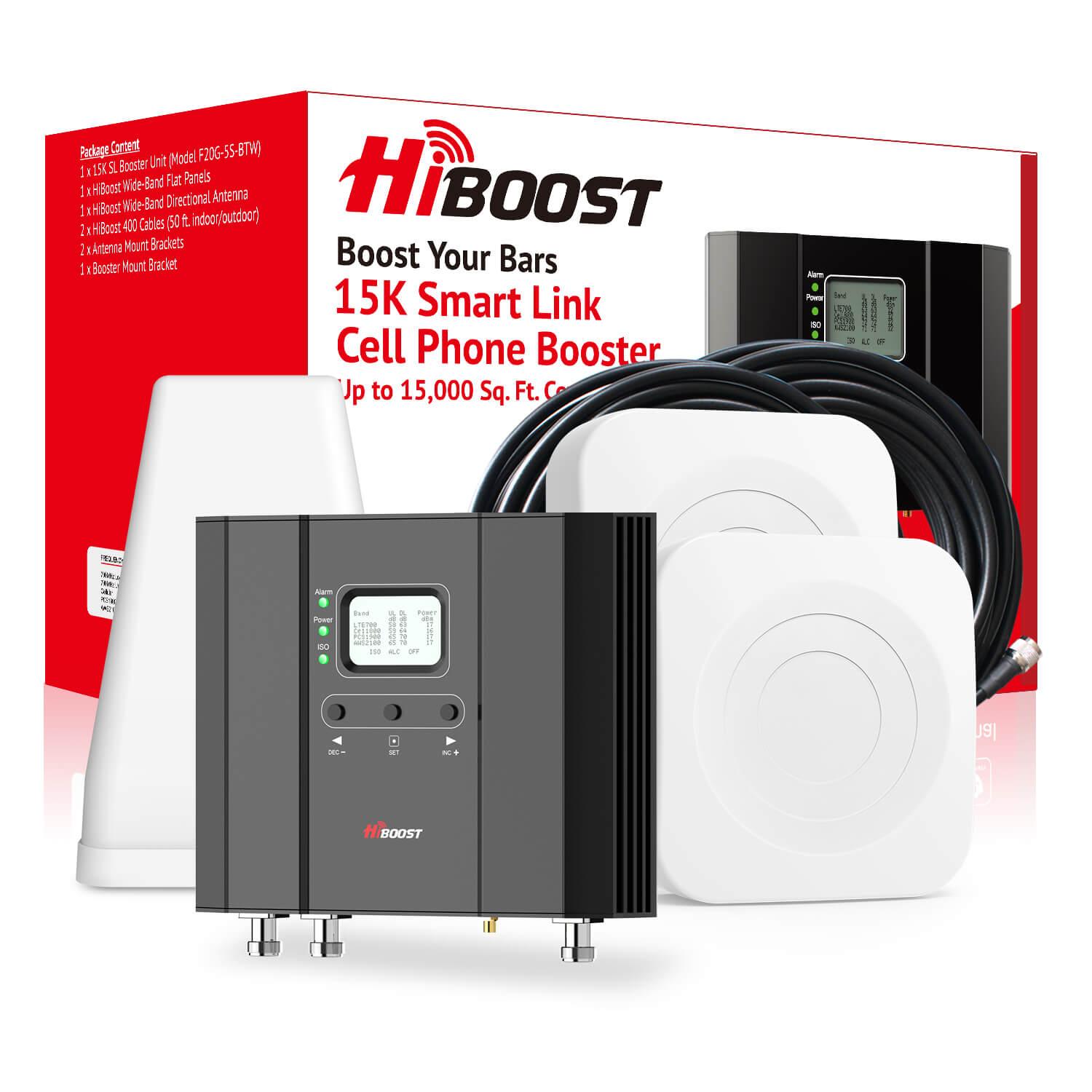

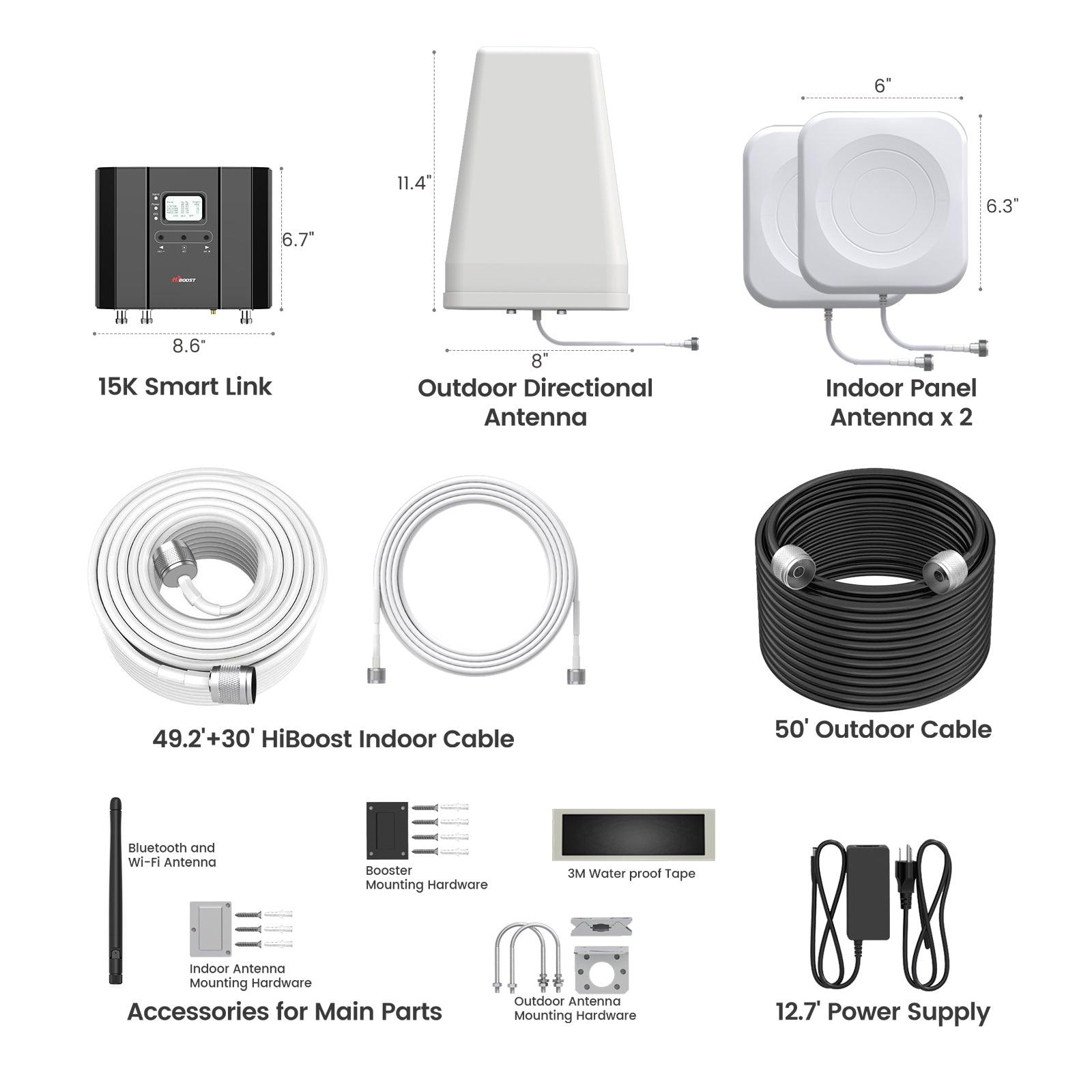

What's in the Box
- 1 x Signal Booster
- 1 x High-gain Outdoor Directional antenna
- 1 x Indoor antenna
- 2 x Indoor antenna
- 1 x Bluetooth and Wi-Fi antenna
- 1 x 49.2ft Cable
- 1 x 30ft cable
- 1 x Power supply
- 1 x Accessories for main parts
- 1 x 3M waterproof tape
- 1 x User Manual
How to Install Your Signal Booster
Step 1:
Connect the power supply and whip antenna to the booster.
Step 2:
Download the Signal Supervisor app and connect the booster.
Step 3:
Use the Signal Manager app to adjust the direction of the outdoor antenna. Find the best signal position, install the outdoor antenna, and connect it to the booster with the cable.
Step 4:
Install the two indoor antennas.
Note: Ensure proper isolation between the indoor and outdoor antennas.
Product Comparison
65 dB
60 dB
65 dB
62 dB
DL 12 dBm
DL 10 dBm
DL 10 dBm
DL 10 dBm
Outside Signal Strength
• 4,000 sq ft with 2 bars
• 6,200 sq ft with 3 bars
• 10,000 sq ft with 5 bars
Outside Signal Strength
• 1,000 sq ft with 2 bars
• 2,000 sq ft with 3 bars
• 4,000 sq ft with 5 bars
Outside Signal Strength
• 3,000 sq ft with 2 bars
• 4,200 sq ft with 3 bars
• 6,000 sq ft with 5 bars
Outside Signal Strength
• 500 sq ft with 2 bars
• 1,000 sq ft with 3 bars
• 2,000 sq ft with 5 bars
3-4 Rooms
2-3 Rooms
4-5 Rooms
Single Room
Panel Antenna
Panel Antenna
Built-in Antenna & Panel Antenna
Whip Antenna
All Canadian Carriers
All Canadian Carriers
All Canadian Carriers
All Canadian Carriers
Tech Specs
- WORKING BANDS Band 12, Band 13, Band 5, Band 25/2, Band 4, Band 66
- UL FREQUENCY RANGE 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755
- DL FREQUENCY RANGE 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155
- SUPPORTED STANDARDS CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all other cellular standards
- MAXIMUM GAIN 70 dB
- MAXIMIUM OUTPUT POWER UL 17 dBm, DL 13 dBm
- MGC(STEP ATTENUATION) ≥ 25 dB / 1 dB step
- I/O PORT SMA-Female&N-Female
- IMPEDANCE 50 ohm
- ENVIRONMENT CONDITION IP40
- DIMENSIONS 8.6 in×6.5 in ×2 in /218 mm×165 mm×50 mm
- WEIGHT ≥ 5.0 lb / 2.2 kg
- POWER SUPPLY Input AC 100~240 V, 50/60 Hz, Output DC 12 V/3 A
Support
Data Downloads
FAQ
1. What is the 15K Smart Link Deluxe used for?
2. What is the maximum gain and output power?
3. How many users/devices can it support?
4. Can I install it myself?
5. Does it support 5G?
6. Is internet or a subscription required?
