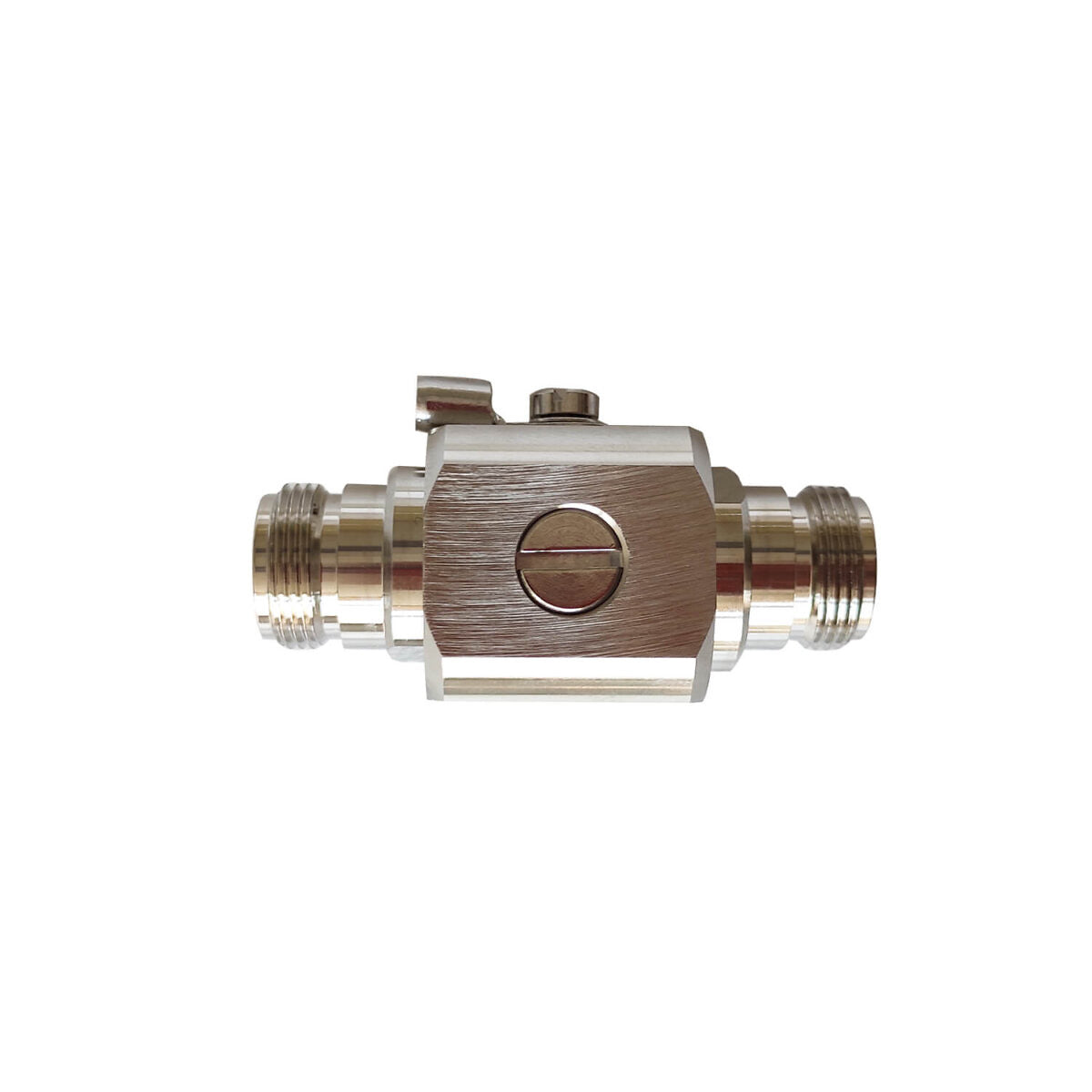

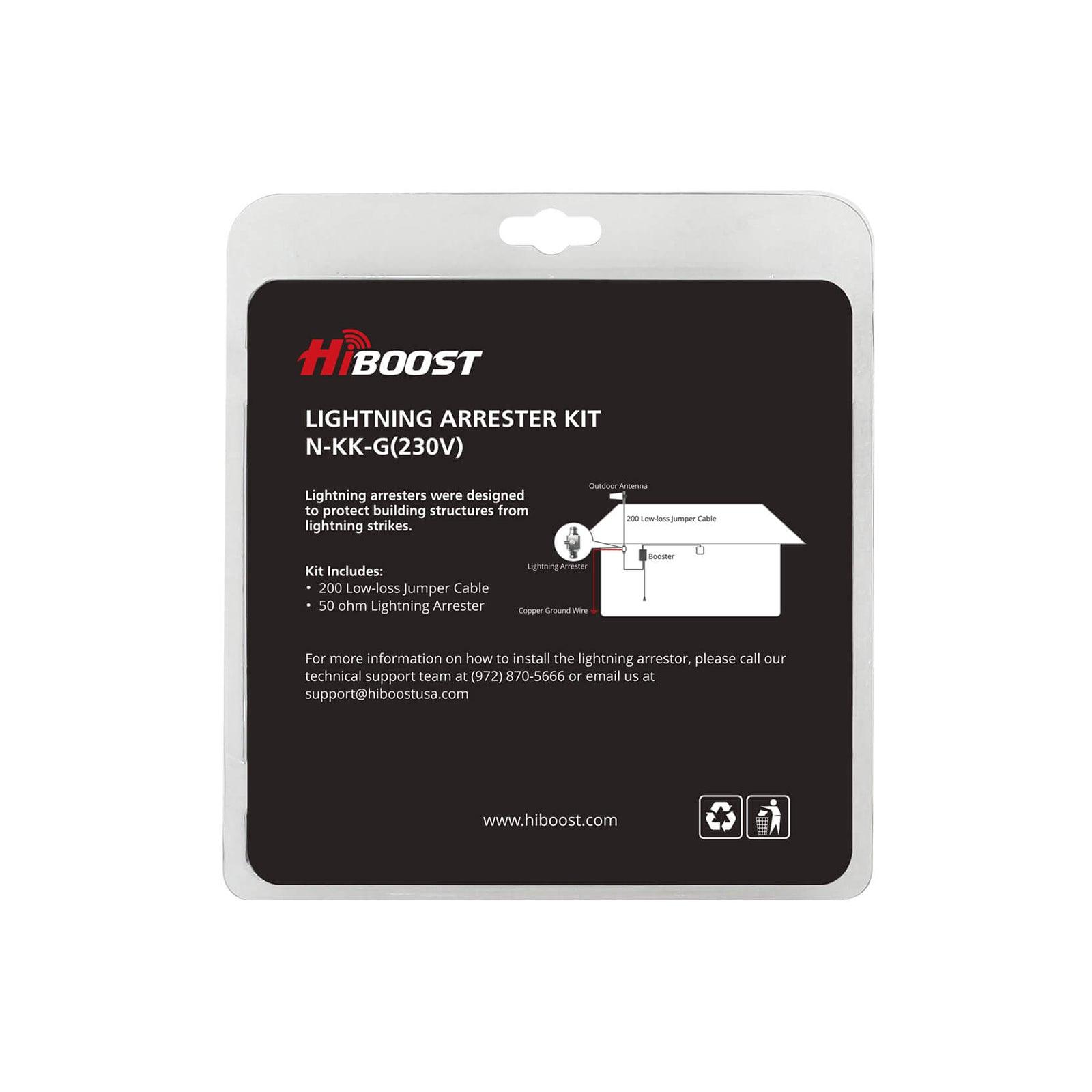

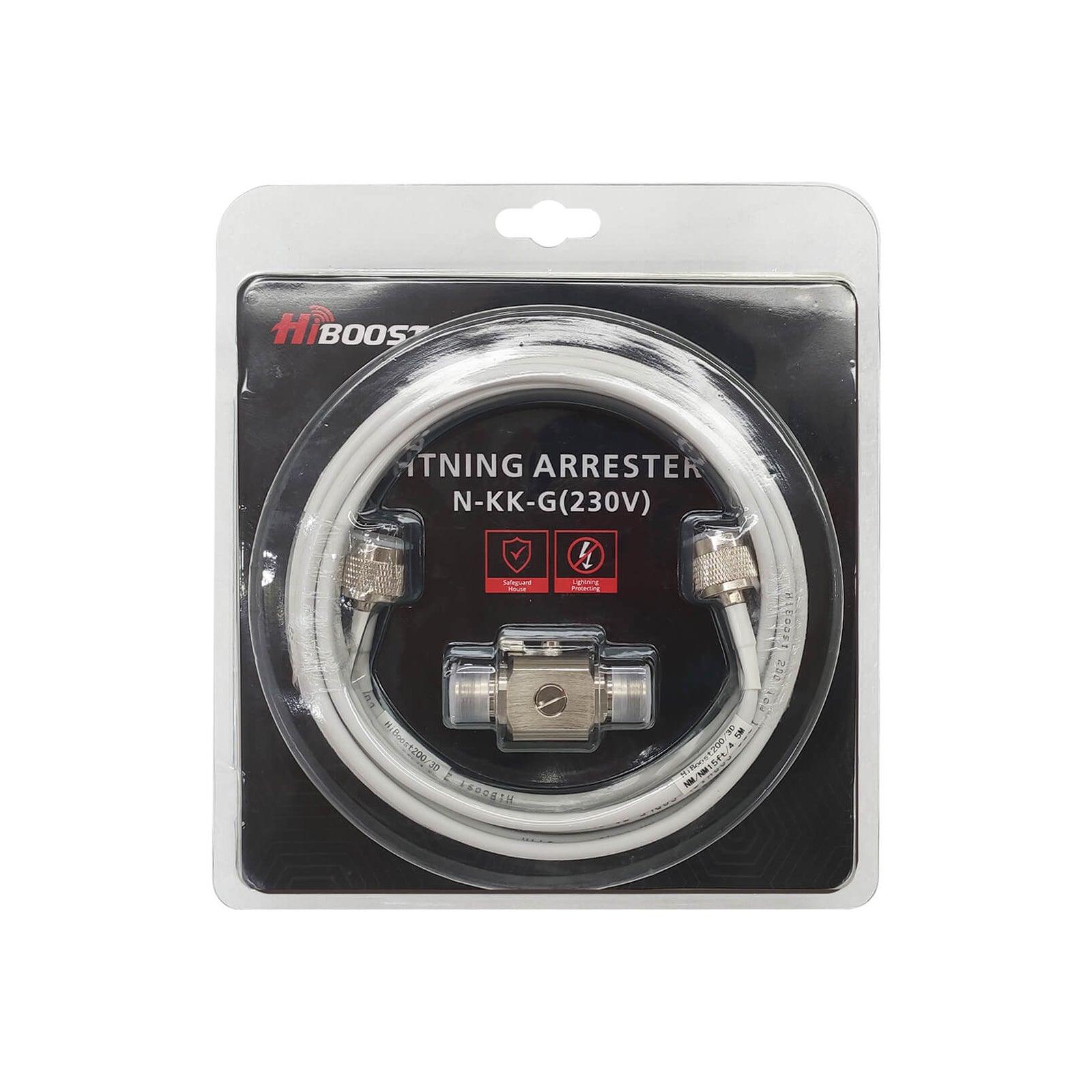

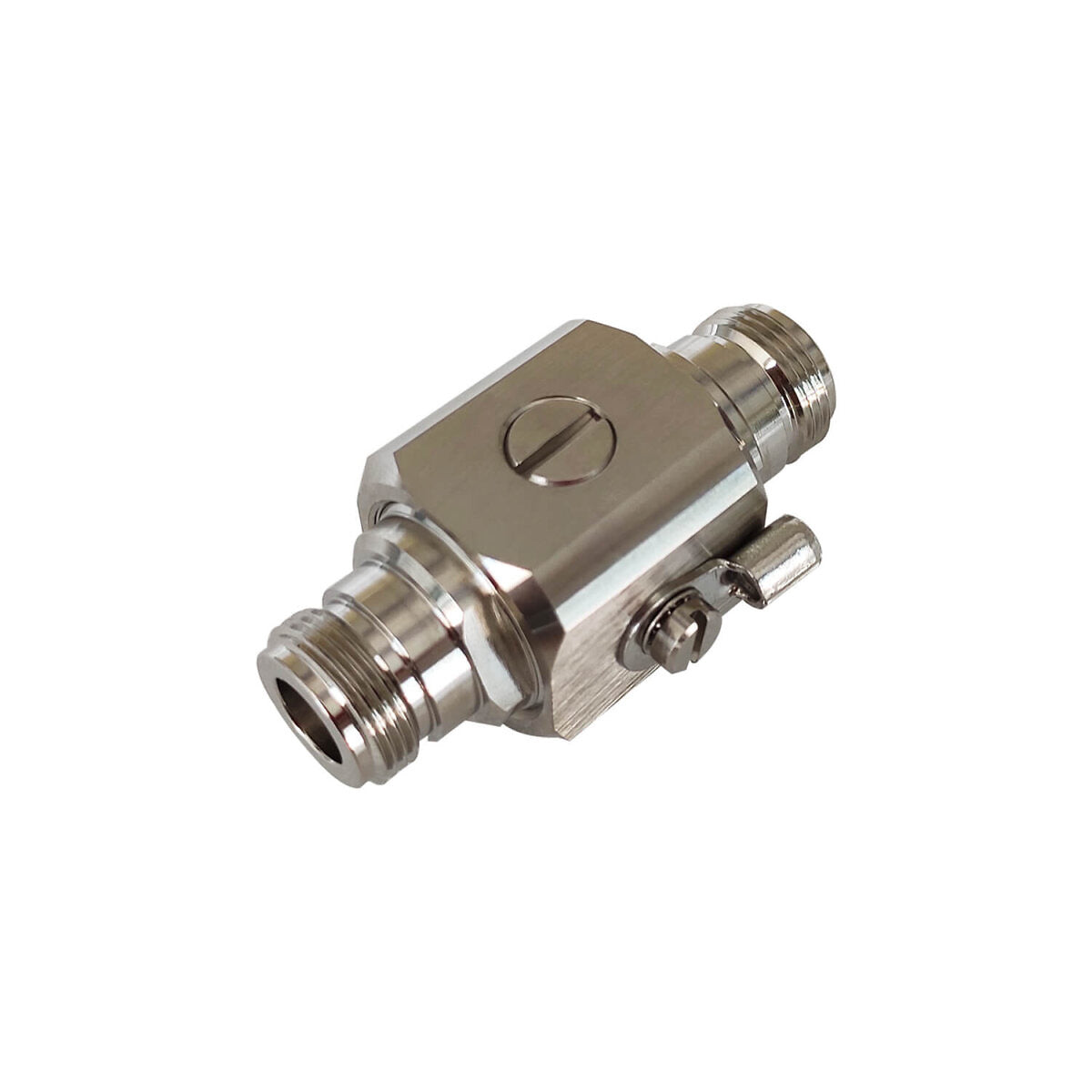

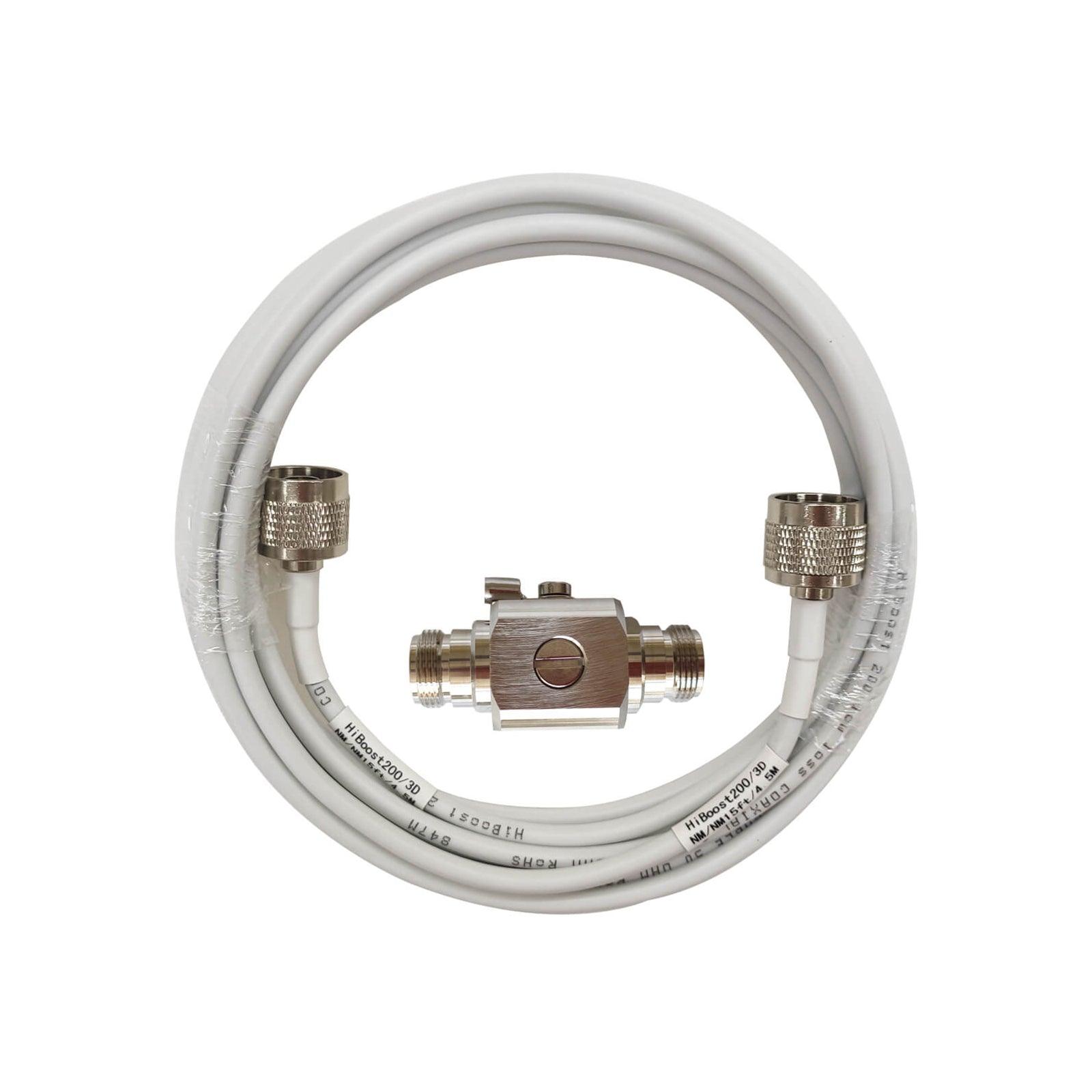

HiBoost antenna lightning arrester kit
- Exquisite craft
- Easy installation
- Fine quality
Excellent antenna arrester
This lightning arrester kit is fully compatible with all HiBoost mobile signal booster models.
Reliable lightning prevention
Up to 3 GHz frequency range, 2500V pressure resistance. Extremely low in-line resistance reduces unnecessary attenuation of signal strength and maximizes signal transmission distance.
Excellent electrical insulation
Quality beryllium bronze material ensures high insulation resistance up to 5000 MΩ. No worry about over-voltage.
Easy to install
Light weight and compact, it only takes you few seconds to screw it on the outdoor antenna of your signal booster.
Video
Specs
CHARACTERISTIC IMPEDANCE
50Ω
FREQUENCY BAND RANGE
DC~3GHz
RATED DC BREAKDOWN VOLTAGE
230V±20%
CONTACT RESISTANCE
Inner conductor:≤1mΩ; Outer conductor≤1mΩ
INSULATION RESISTANCE
≥5000 MΩ
MEDIUM PRESSURE
2500V
INNER CONDUCTOR SEPARATION FORCE
0.57N
MECHANICAL LIFE
>500 times (12 times/per min)
ENVIRONMENT TEMP
-40~85℃
RELATIVE HUMIDITY
+40℃ can meet 95%
WATEPROOF REQUIREMENT
No
